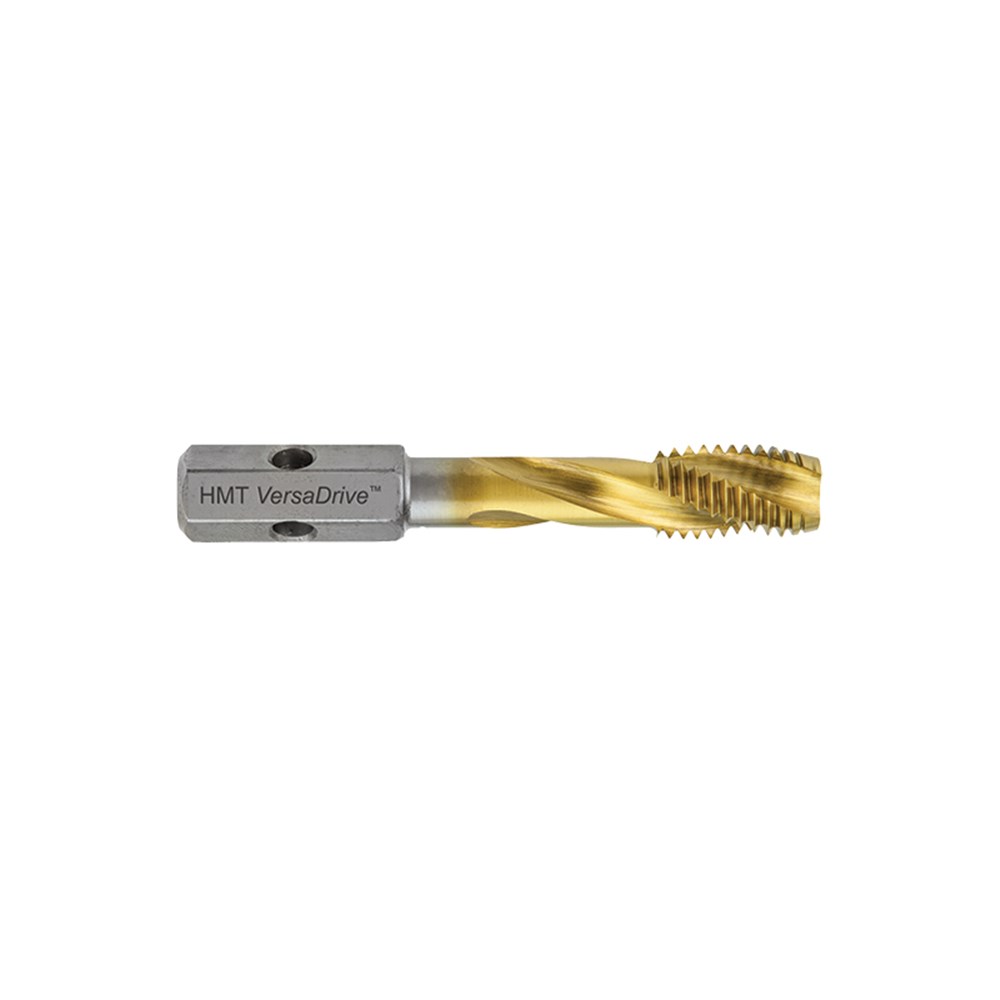

VersaDrive Spiral Flute ImpactaTap 1 - 8 UNC

MPN: 309020-0070
Barcode: 5060451526424

    VersaDrive Spiral Flute ImpactaTap 1 - 8 UNC

    Product Code: 309020-0070

    Key Features
    VersaDrive ImpactaTaps® are the first and only range of taps that are suitable for impact wrenches and impact drivers, providing at least 15x faster performance than tapping by hand.
    Spiral Flute Taps are designed for tapping deep and blind holes which can also be adapted for use in Mag-Based Drills and with any standard hand tap wrench.
    Specially hardened for impact wrench use
    Precision ground for high accuracy to create the perfect tapped hole
    Safer tapping with minimal kickback
    Technical Specifications
    Brand ALPHA
    Series VersaDrive
    Diameter (mm) 25.4
    Diameter (in) 1
    Type of Measure UNC
    Flute Length (mm) 45
    Depth of Cut (mm) 63.5
    Drill Size (mm) 22.25
    Head Type Spiral Flute
    Material HSS
    OAL (mm) 110
    Shank Size (mm) 11
    TPI 8
    Barcode 5060451526424
    Category Versadrive Spiral Flute ImpactaTaps
    Weight (gr) 211.00
    Order Quantity 1

    VersaDrive ImpactaTaps® are the first and only range of taps that are suitable to be driven by impact wrenches and impact drivers, providing at least 15x faster performance than tapping by hand.

    VersaDrive™ Spiral Flute Taps are designed for tapping deep and blind holes which can also be adapted for use in Mag-Based Drills and with any standard hand tap wrench.

    • Specially hardened for impact wrench use
    • Precision ground for high accuracy to create the perfect tapped hole
    • Safer tapping with minimal kickback
    • High grade tool steel for high performance and long life
    • Titanium nitride coating reduces heat and increases lubricity for extended life
    • High strength, non slip shank design
